What is PL-1000L Integrated Hydraulic Rock Drill and Splitter Machine?
PL-1000L integrated hydraulic rock drill and splitter machine is a component that can be installed on 25-38 ton excavators, developed by LERB Machinery based on different hard rock characteristics. The PL-1000L integrated hydraulic rock drill and splitter machine has dual functions of drilling and splitting. It can accurately drill into hard rock and then perform in-hole splitting operations, characterized by efficient, non-explosive rock fragmentation, effectively enhancing construction safety.
PL-1000L Integrated Hydraulic Rock Drill and Splitter Machine Specifications
Product Specifications| Total Weight | 4T |
| Overall Length | 4200mm |
| Overall Width | 1680mm |
Rock Drill Parameters| Rated Power | 22KW |
| Drill Hole Diameter | Ф115mm |
| Drill Hole Depth | 1600mm |
| Drilling Speed | 1m/min |
| Operating Noise | Compliant with GB19872-2005 |
Splitting Machine Parameters| Splitting Depth | 1000mm |
| Max. Splitting Force | 12000T |
| Rotation Angle | 120° |

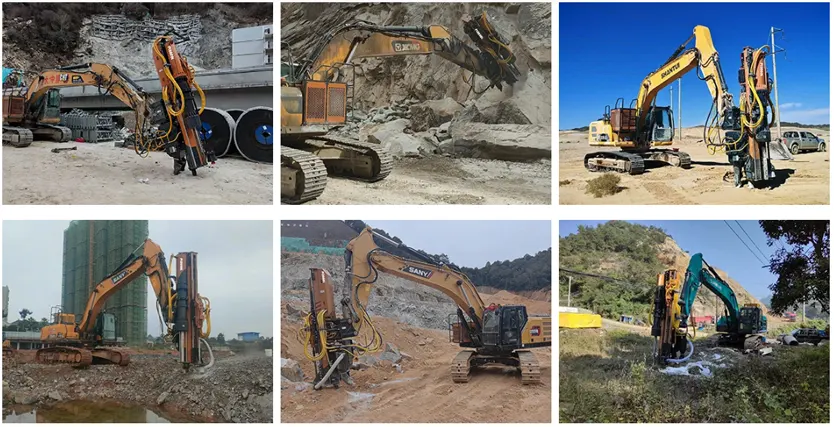

PL-1000L Integrated Hydraulic Rock Drill and Splitter Machine Applications
- Using the PL-1000L integrated hydraulic rock drill and splitter machine, it is easy to perform drilling and splitting operations on hard rocks such as granite, marble, sandstone, and limestone.
- When extracting metallic and non-metallic ores, coal gangue, as well as gems like jade and soft jade, the PL-1000L integrated hydraulic rock drill and splitter machine demonstrates outstanding operational capability.
- For secondary crushing of giant raw stones exceeding thousands of cubic meters, the PL-1000L integrated hydraulic rock drill and splitter machine has efficient processing capacity.
- It is widely applied for the refinement of stones below a cubic meter, waste rock removal, cleaning narrow corners, and site leveling or grading operations.
PL-1000L Integrated Hydraulic Rock Drill and Splitter machine Advantages
- PL-1000L integrated hydraulic rock drill and splitter machine uses imported high-grade wedge block sets, supporting multi-angle drilling to overcome the complex challenges of slopes, excavation faces, and foundation pits.
- The structure of the PL-1000L integrated hydraulic rock drill and splitter machine is simple and robust, ensuring precise positioning and a longer service life.
- PL-1000L integrated hydraulic rock drill and splitter machine features a lighter design while still providing stable and efficient splitting results.
- Equipped with an industrial wireless remote control system, the PL-1000L integrated hydraulic rock drill and splitter machine allows for seamless single-person operation management during work, improving operational safety.
- With a dual-stage splitting cylinder, the pressure is doubled, making it easy to split ultra-hard rocks, maximizing splitting efficiency and total output.
Why Choose PL-1000L Integrated Hydraulic Rock Drill and Splitter machine?
PL-1000L integrated hydraulic rock drill and splitter machine produced by LERB Machinery is designed to meet various non-explosive rock excavation needs in industries such as mining, quarrying, and construction. We have an 18,000 square meter production base, over 120 sets of CNC machine tools and testing equipment, and more than 80 patents, ensuring consistent product quality and durability. The PL-1000L integrated hydraulic rock drill and splitter machine is manufactured according to ISO standards and complies with international standards, including CE certification. It has a large user base and is highly praised in the industry for its outstanding operational capabilities and high reliability.
