High-performance deep-hole hydraulic rock drill rig for sale, model T6, which is efficient, has excellent performance, and is offered at a favorable price.

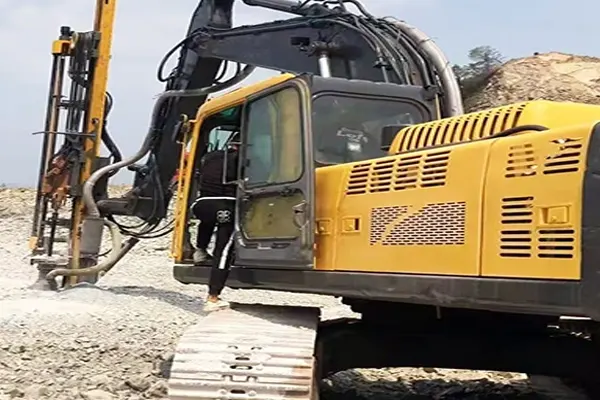

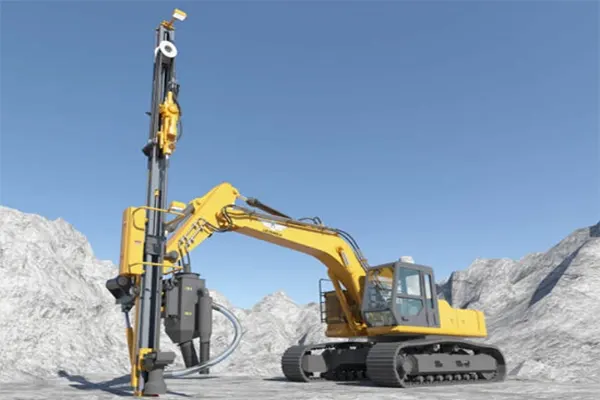

T6 deep-hole hydraulic rock drill rig is a high-performance attachment that can be installed on excavators of 24 tons or more, capable of meeting precise drilling needs in various complex and low-quality environments. This rock drill is equipped with a unique modular interface, allowing for quick and easy installation. The integrated automatic drill rod handling system significantly accelerates operational efficiency. The T6 deep-hole hydraulic rock drill rig operates hydraulically, greatly enhancing stability and safety during operations, whether drilling into hard rock or working in complex low-quality structures, demonstrating excellent performance.
| Rock Drill | Model | LD22S |
| Impact Power | 22kW | |
| Impact Frequency | 38Hz | |
| Rotation Torque | 1522Nm | |
| Rotation Speed | 0-140rpm | |
| Drilling Diameter | 89-127mm | |
| Feed Beam | Total Length of Feed Beam | 6.5m |
| Drill Rod Length | 3.66m | |
| Number of Drill Rods | 6pcs | |
| Drill Rod Replacement Method | Semi-automatic | |
| Screw Air Compressor | Free Air Delivery (FAD) | 7m³/min |
| Discharge Pressure | 7bar | |
| Excavator Requirements | ≥24ton |

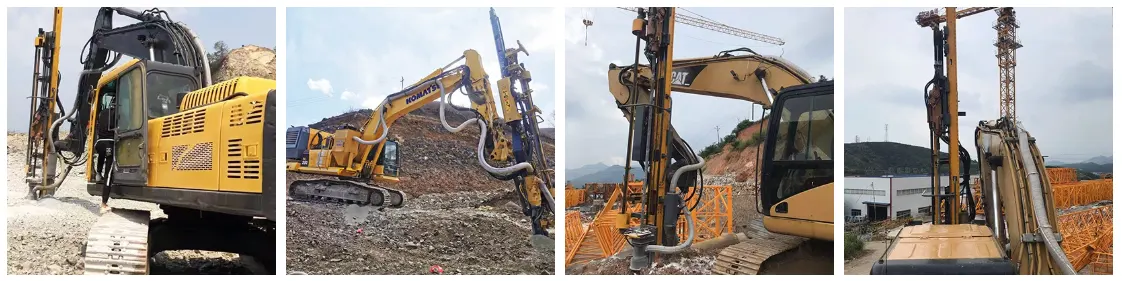

T6 deep-hole rock drill rig features a 3.66-meter drill rod and can be installed on excavators of 24 tons or more. Its built-in 360° rotation capability allows it to meet drilling needs in any scenario. Operating hydraulically enhances its safety and stability, enabling it to adaptively adjust its rotational speed based on the hardness of hard rock layers such as granite and basalt. The operation is very simple, typically requiring only one operator to handle it flexibly.
LERB Machinery has focused on the research and manufacturing of rock drills and splitters for many years and possesses extensive experience. We developed the T6 deep-hole rock drill rig to meet user demands for deep hole drilling, offering advantages such as high efficiency, simple operation, and wide applicability. It has also passed international certifications such as IOS and CE. The T6 deep-hole rock drill rig employs a non-explosive rock breaking method, significantly enhancing operator safety. With its advanced drilling solutions and efficient, safe operational methods, it has received high praise in the industry.
