P240 hydraulic rock splitter is suitable for breaking a wide variety of hard rock and performs exceptionally well even under harsh working conditions.

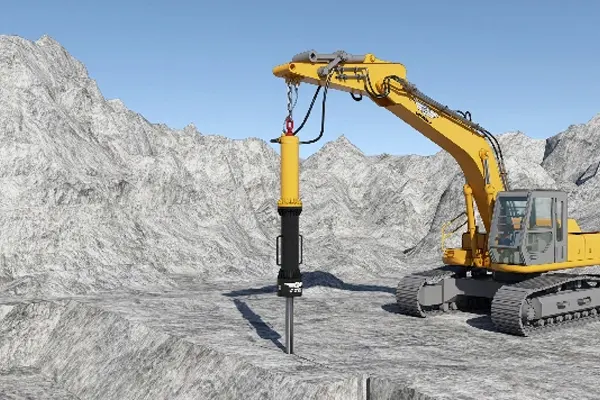

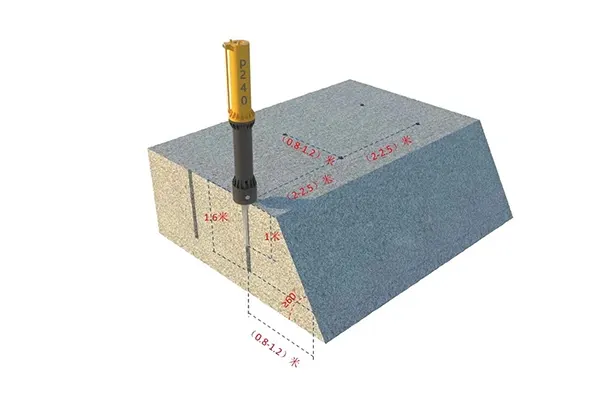

P240 hydraulic rock splitter features a hydraulic design with a drilling depth of up to 2 meters, optimized for deep hole drilling and breaking. The hole spacing is designed to be between 1600 and 1800mm, greatly enhancing the breaking effectiveness and overall construction efficiency. The P240 hydraulic rock splitter is an excavator attachment developed and manufactured by LERB Machinery, capable of delivering a maximum splitting force of 15,000 tons, enabling it to handle the demolition and breaking of various hard rocks and high-strength reinforced concrete.
| Operating Weight | 1050kg |
| Drilling Diameter | Ø115mm |
| Drill Hole Depth | 1.6m |
| Max. Splitting Force | 12000T |
| Wedge Expansion Gap | 30mm |
| Total Splitter Length | 3915mm |
| Hydraulic Cylinder Length | 2880mm |
| Hole Spacing | 1000-1200mm |
LERB Machinery is a manufacturer specializing in the research, development, and production of rock drills and hydraulic rock splitters. The P240 hydraulic rock splitter has received international certifications such as ISO and CE, featuring advanced breaking technology and outstanding performance for effectively breaking various types of hard rock. This equipment uses hydraulic pressure to act on the interior of the rock, providing a safer working method. It is simple to operate and maintain, requiring only one person to easily handle it. With a “quick assembly and disassembly” design, installation and removal are quick, greatly enhancing operational efficiency.
LERB Machinery holds over 80 patents and boasts a production base of 18,000 square meters, along with 120 advanced CNC machines and testing equipment. The P240 hydraulic rock splitter is an excavator attachment developed based on in-depth market analysis and user needs. It offers non-explosive breaking treatment for hard rock, along with advantages such as long lifespan, high efficiency, and enhanced safety.
