P300 Hydraulic Rock Splitter easily handles drilling and breaking needs for various types of rocks, thanks to its outstanding performance that meets diverse application requirements.

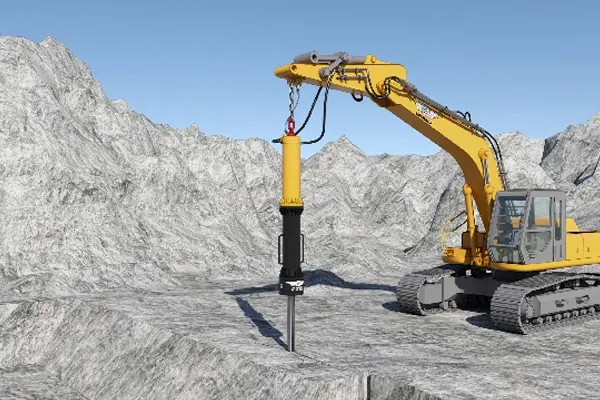

P300 hydraulic rock splitter is an excavator attachment developed by LERB Machinery, with a maximum splitting force of up to 30000 tons. This splitter operates hydraulically and consists of two main components: a high-pressure hydraulic pump station and a splitting actuator. The introduction of the P300 hydraulic rock splitter meets the industry's demand for deep drilling and breaking of rocks, making it capable of easily handling rocks of varying hardness.
| Operating Weight | 1400kg |
| Drilling Diameter | Ø152mm |
| Drill Hole Depth | 2.1m |
| Max. Splitting Force | 30000T |
| Wedge Expansion Gap | 35mm |
| Counter Wedge Diameter | Ø152mm |
| Counter Wedge Length | 1480mm |
| Total Splitter Length | 4640mm |
| Hydraulic Cylinder Length | 3160mm |
| Hole Spacing | 1600-1800mm |
P300 hydraulic rock splitter crushes different types of rocks using hydraulic power, employing a non-explosive breaking method that significantly enhances operational safety. It is equipped with an independent control system, allowing a single operator to easily perform operation, inspection, and maintenance. Developed by LERB Machinery through in-depth industry insights and user needs, the P300 hydraulic rock splitter is a deep hole drilling and rock breaking attachment that can be mounted on an excavator. It enables 360° operation without blind spots and leverages the powerful capabilities of the excavator, allowing it to work smoothly even in complex environments.
LERB Machinery operates an 18,000 square meter production base with over 120 CNC machine tools and testing equipment, along with more than 80 patents, ensuring consistent product quality and durability. The P300 hydraulic rock splitter is manufactured according to ISO standards and complies with international standards, including CE certification.
