PL-3000LQ rock drill and splitter machine are equipped with a digital control system, enabling precise drilling and efficient breaking.

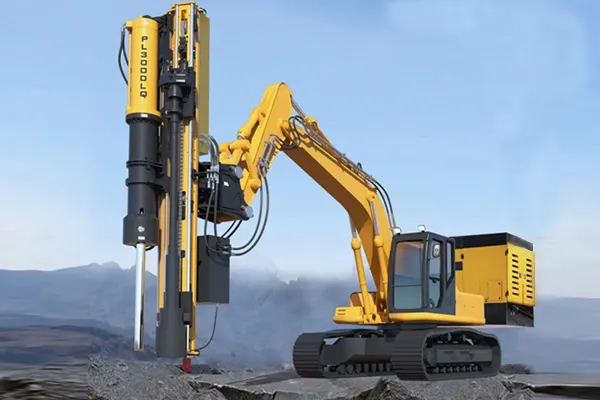

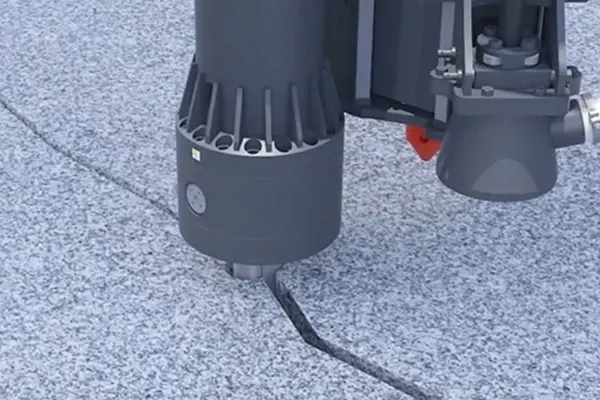

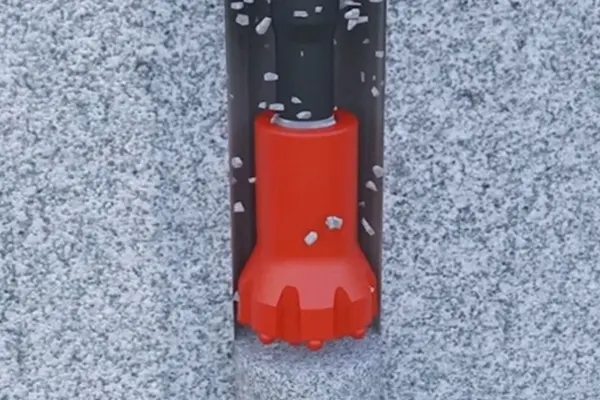

PL-3000LQ integrated rock drill and splitter machine is an attachment that can be installed on excavators ranging from 48 to 65 tons, with a diameter of 230 millimeters. It is widely used for drilling and breaking various types of hard rock. LERB Machinery has developed this product based on in-depth market research and user demands, making it suitable for drilling and breaking operations on different hard rocks such as granite, basalt, and limestone. The PL-3000LQ integrated rock drill and splitter machine features an integrated design that combines the rock drill and splitter machine, utilizing a digital control system for precise drilling on hard rock surfaces. It employs a non-explosive method to break rock within the drilled holes using the splitter, greatly enhancing operational efficiency and safety.
| Total Weight | 8.8T |
| Overall Length | 5950mm |
| Overall Width | 1700mm |
| Overall Height | 2000mm |
| Excavator Requirements | 36-52 ton |
| Input Pressure | 200bar |
| Input Flow Rate | 190L/min |
| Rotational Torque | 3483Nm |
| Drilling Speed | 70rpm |
| Operating Noise | Compliant with GB19872-2005 |
| Drill Hole Diameter | Ø203mm |
| Drilling Depth | 2400mm |
| Splitting Depth | 1800mm |
| Max. Splitting Force | 30000T |
| Rotation Angle | 360° |
| Effective Range | 50m |
| Digital Output Channels Force | 30 |
| Analog Output Channels | 14 |
| Adjacent Channel Rejection | >50dB |
PL-3000LQ integrated rock drill machine and splitter machine is a product developed by LERB Machinery to meet the various needs of users for hard rock. It is an excavator attachment that combines drilling and breaking capabilities, easily handling different types of hard rock for drilling and breaking operations, with advantages such as efficiency, reliability, and high safety.
Equipped with an advanced digital control system, a single operator can easily perform high-precision drilling tasks. The PL-3000LQ integrated rock drill machine and splitter machine is certified by international standards such as ISO and CE. It features a rear-mounted electrical system, making inspections and maintenance very simple, allowing for easy daily maintenance without the need to access its internal components.
LERB Machinery has an 18,000 square meter production base, over 120 CNC machine tools and testing equipment, as well as more than 80 patents, specifically providing efficient and reliable hard rock drilling and breaking solutions for various users. Its customer base spans the globe, and it has gained widespread acclaim in the industry due to its advanced technology and outstanding product performance.
